高级玩法
切割「结构体」

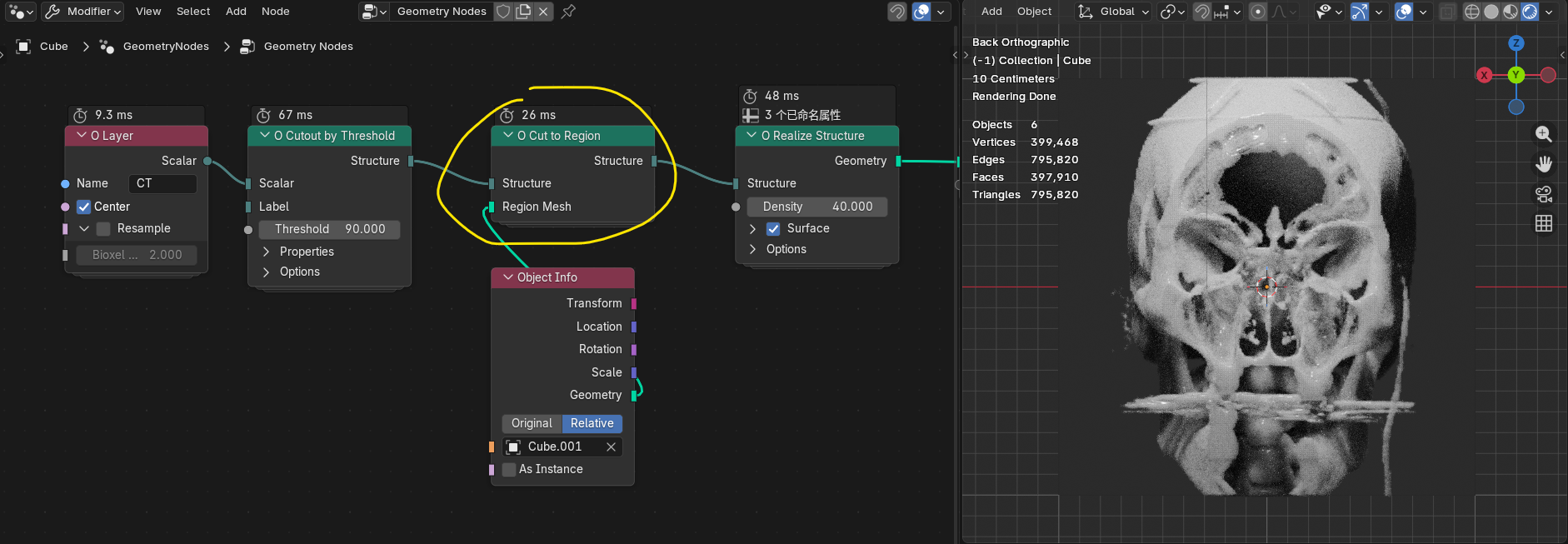

「结构体」可以被切割，呈现部分结构，通过 O Cut 系列节点完成。比如按下图添加 O Cut to Region 节点并连接，添加任意来自场景的物体作为「区域」，输入到节点：
适当调整作为「区域」物体的位置旋转，可以看到头骨结构被限制在区域范围内。
!!! note 插件提供快速让物体虚化的功能，在 3D 视图模式下，右键「区域」物体，菜单选择 Bioxel Nodes > Toggle Phantom
!!! warning 切割会增加计算量，影响实时性能，勾选 O Layer 的 Resample 来提高性能

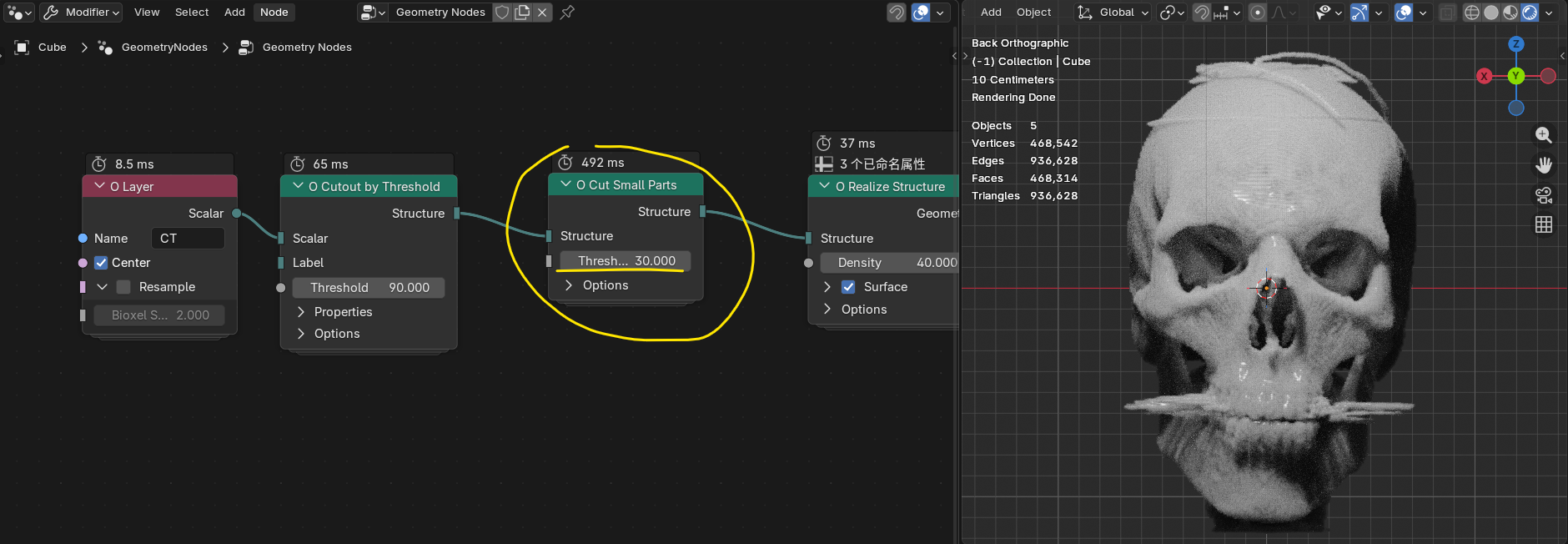

O Cut Small Parts 节点，是清理神器，能快速把零碎的结构删除，只干净连续的大结构。但是计算特别耗时，注意性能。

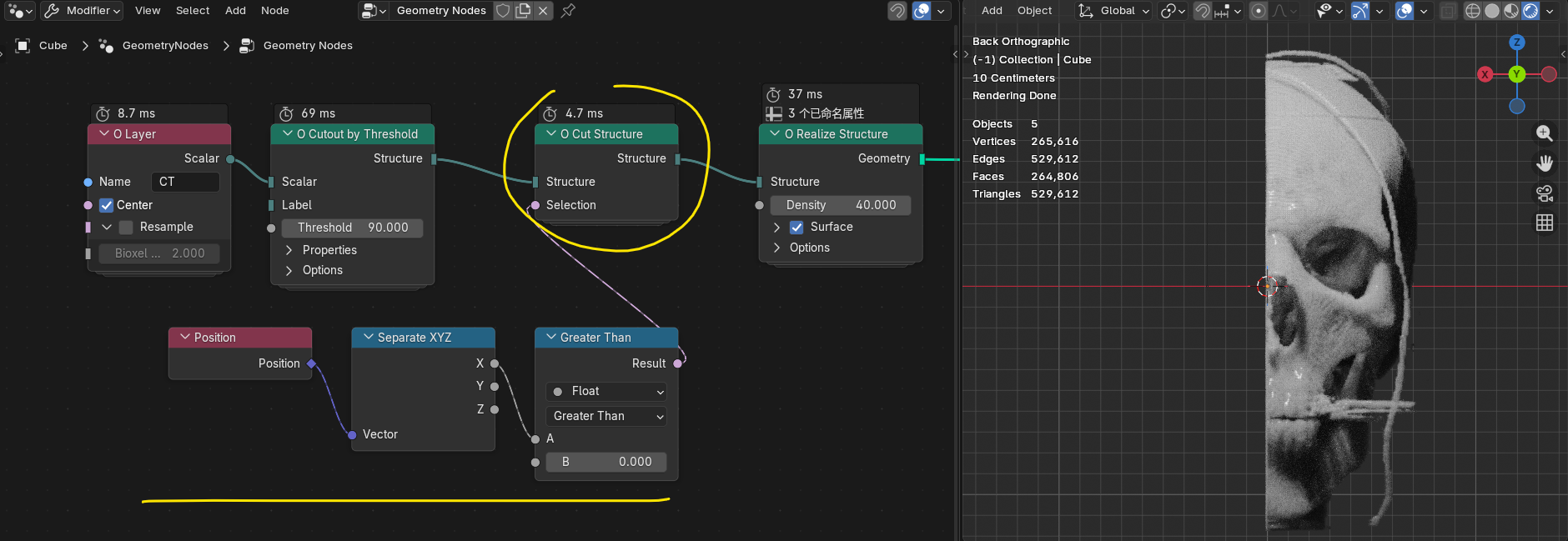

如果你对几何节点很了解，你也可以通过 O Cut Structure 直接定义切割的执行范围，比如下图中，选择切割位置 X 大于 0 的部分。
「结构体」属性设置

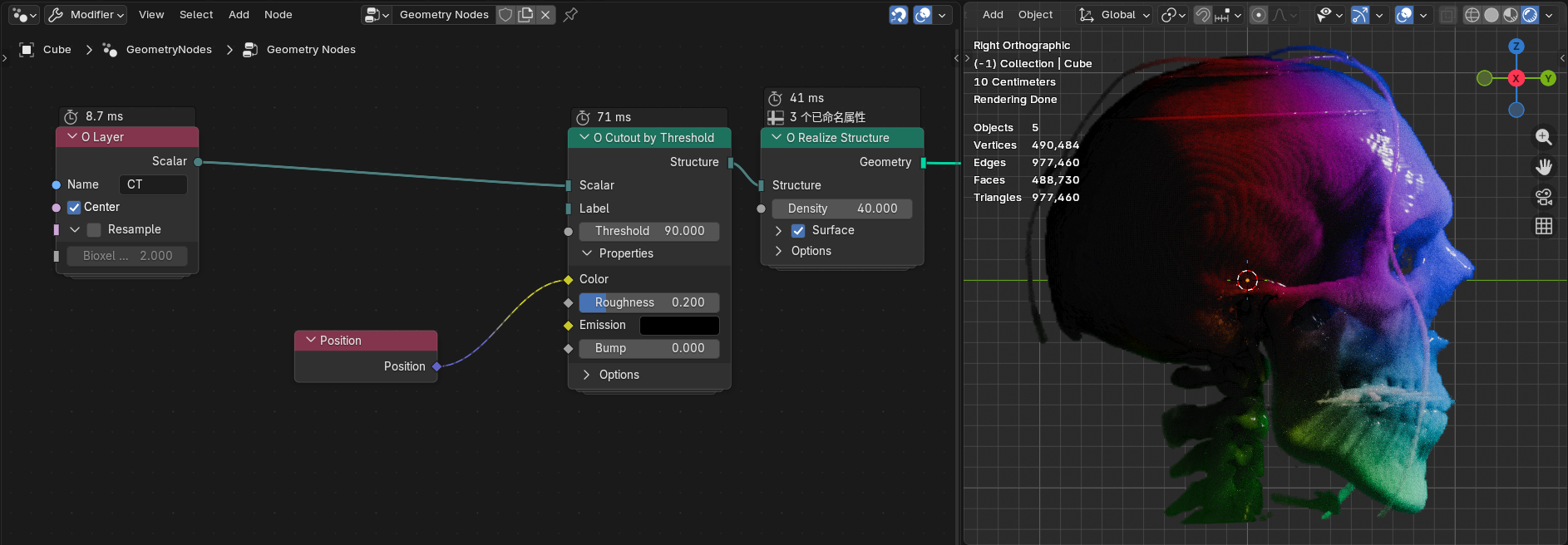

展开 O Cutout by Threshold 的 Properties，你可以直接修改各项属性值，但都只能均一设置，我们可以用场类型数据赋予差异。以颜色属性为例，比如直接接入 Position 节点，效果如下：

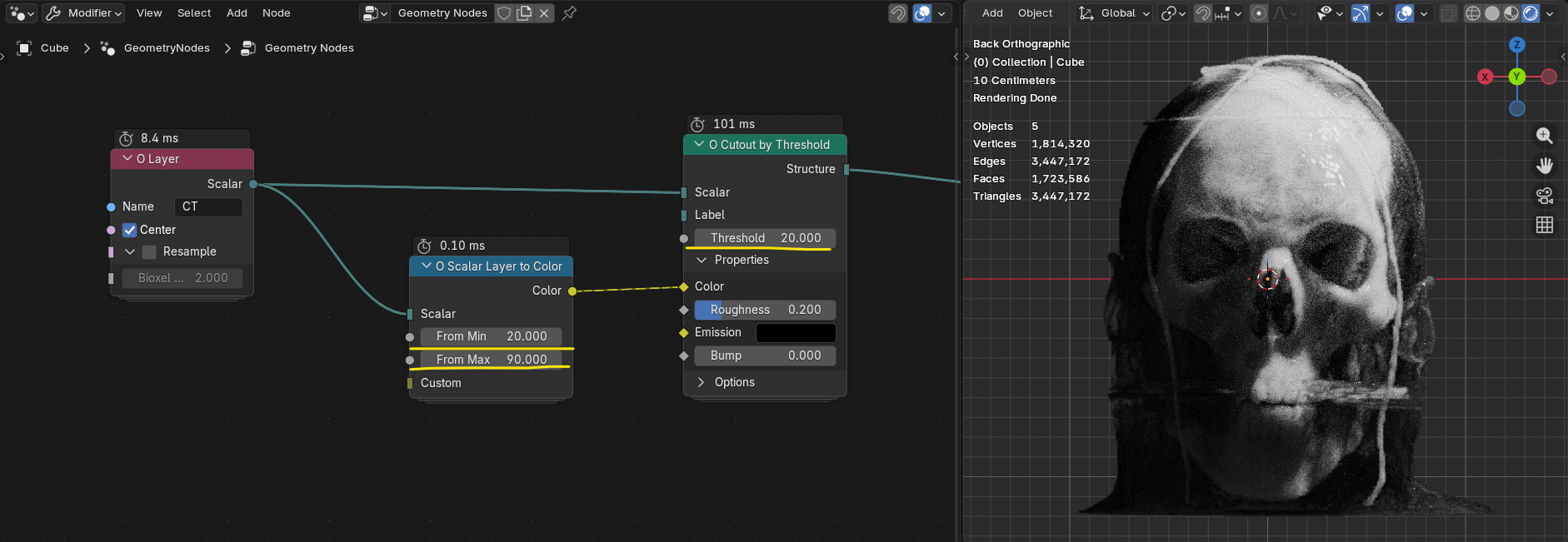

我们还可以把数据层的值映射为颜色渐变，这里需要用到 O Scalar Layer to Color 节点（这类转换功能的节点都在节点菜单，Add > O Bioxel > Utilities 下）。调整如下
- O Cutout by Threshold：Threshold 设置为 20
- O Scalar Layer to Color：From Min 和 From Max 分别设置为 20 和 90
由于软组织的 CT 值小于骨质，当阈值降低，可以看到除了头骨外，附着的软组织也被呈现了出来。O Scalar Layer to Color 的 From Min 和 From Max，定义了颜色从 0~1 的取值范围。因此低值的软组织呈现黑色，高值的骨质呈现白色

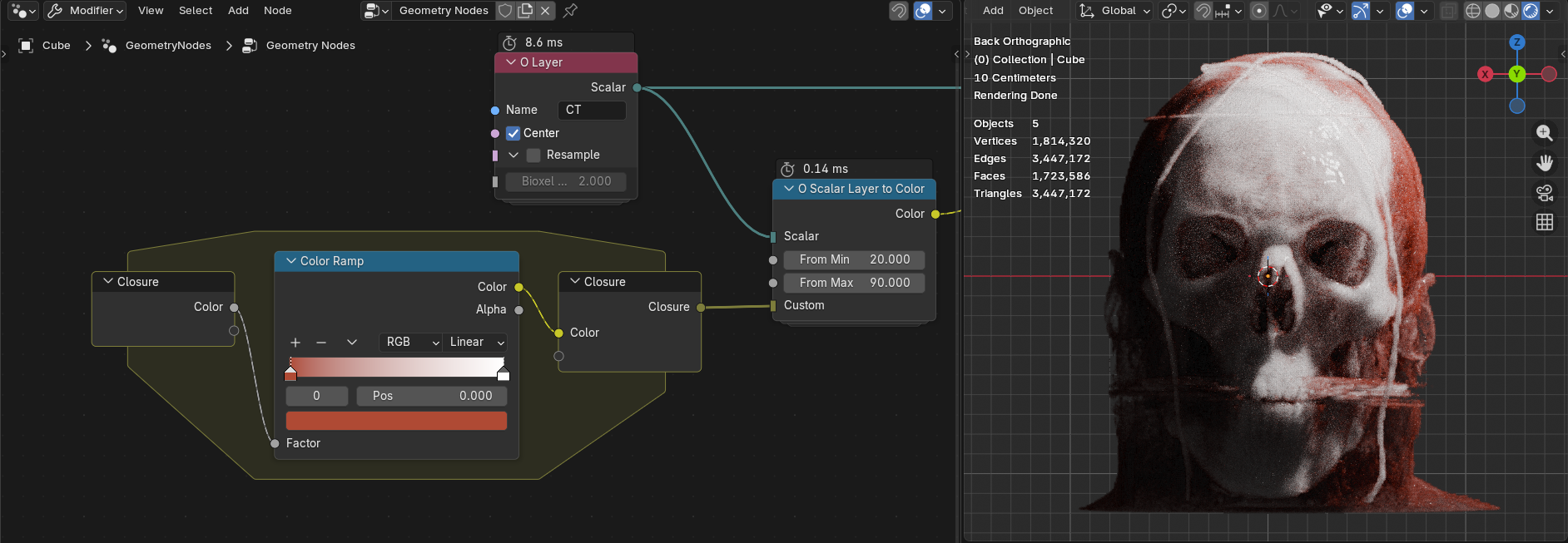

我们还可以通过 Blender 5.0+ 的 Closure 节点来自定义映射方式。比如连接 Color Ramp 节点，把属于软组织的黑区，改为暗红色
哒哒！解剖渲染就做好啦👍
其他「结构体」属性也可以按这样的方式调整，除了 O Scalar Layer to Color，还有 O Scalar Layer to Factor 来转换为 0~1 的单值
